PS2 to USB

.PHONY: help install compile compile-clean compile-serial upload upload-serial monitor clean list-boards list-ports

# ---- Project settings ----
SKETCH       ?= PS22USB.ino
BUILD_DIR    ?= build

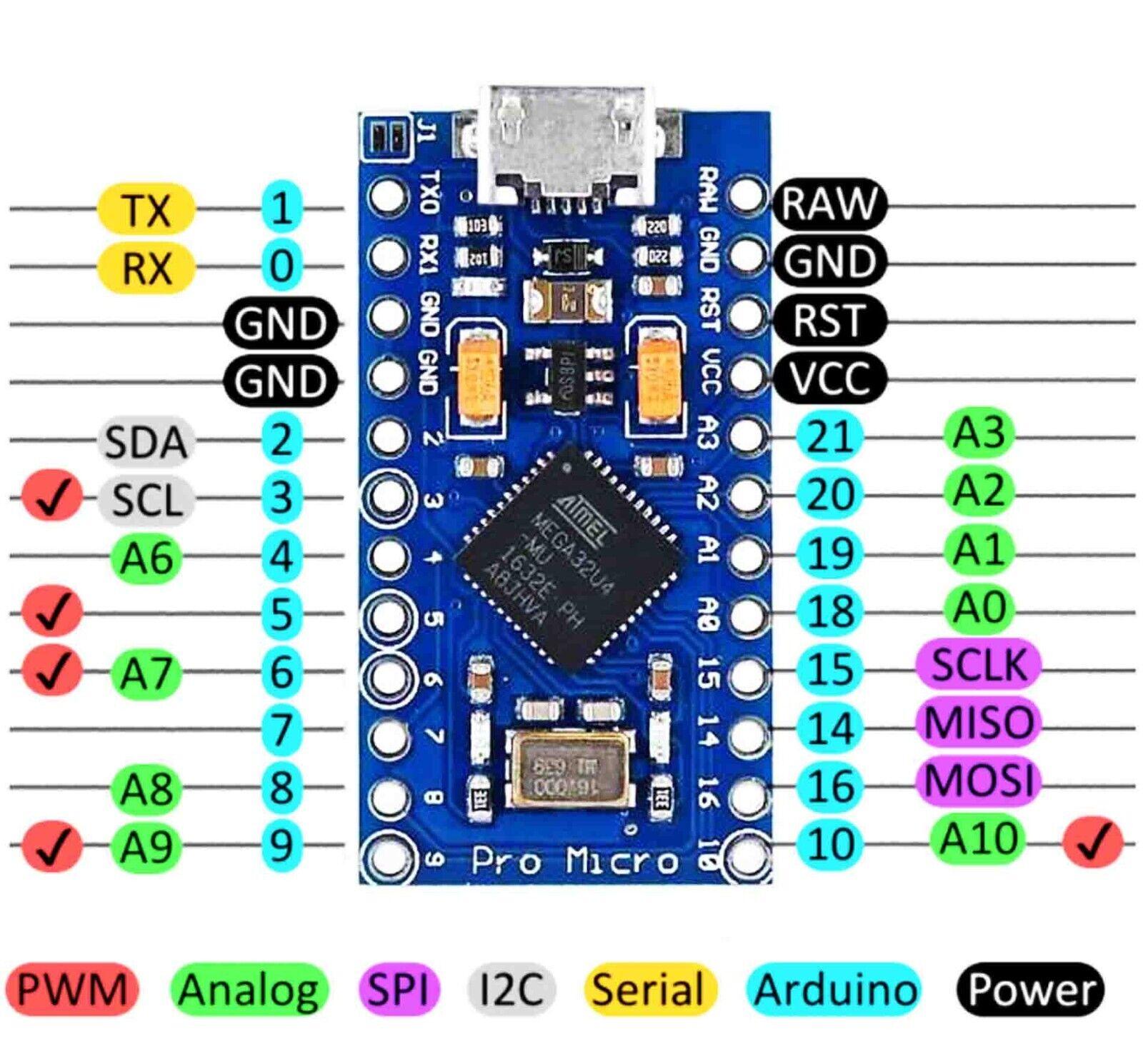

# SparkFun Pro Micro (ATmega32U4, 5V/16MHz)
# Package: SparkFun AVR Boards
FQBN         ?= SparkFun:avr:promicro:cpu=16MHzatmega32U4

# Set this when uploading, e.g.:
#   make upload PORT=/dev/cu.usbmodem1101
PORT         ?=

# Optional: override baud for monitor
BAUD         ?= 115200

# USB CDC (USB serial) — see docs/README.md
#   CDC_DISABLED=1 (default): pure HID on USB after HID init (no /dev/tty.* from sketch).
#   CDC_DISABLED=0: stock composite CDC + HID (USB Serial works in safe mode; CHIDJB-style).
CDC_DISABLED ?= 1

# ---- Arduino CLI ----
ARDUINO_CLI  ?= arduino-cli

# ---- Dependencies ----
BOARD_CORE   ?= SparkFun:avr
LIBS         ?= PS2KeyAdvanced HID-Project

# -DCDC_DISABLED removes CDC from USB descriptors (Arduino AVR core).
# Uses compiler.cpp.extra_flags only; board USB -DUSB_VID/… stays in build.extra_flags.
COMPILE_EXTRA_FLAGS :=
ifeq ($(CDC_DISABLED),1)
  COMPILE_EXTRA_FLAGS += --build-property compiler.cpp.extra_flags=-DCDC_DISABLED
endif

# Separate output per variant so HID-only and serial builds never share the same .hex.
VARIANT_DIR  := $(if $(filter 1,$(CDC_DISABLED)),hid-only,with-serial)
OUTPUT_DIR   := $(BUILD_DIR)/$(VARIANT_DIR)
HEX          := $(OUTPUT_DIR)/PS22USB.ino.hex

all: install compile upload monitor

install:
  @command -v "$(ARDUINO_CLI)" >/dev/null 2>&1 || { echo "ERROR: arduino-cli not found. Install it first, then re-run 'make install'."; exit 1; }
  "$(ARDUINO_CLI)" config init --overwrite >/dev/null 2>&1 || true
  "$(ARDUINO_CLI)" core update-index
  "$(ARDUINO_CLI)" core install "$(BOARD_CORE)"
  @set -e; for lib in $(LIBS); do \
    echo "Installing library: $$lib"; \
    "$(ARDUINO_CLI)" lib install "$$lib" || true; \
  done
  @echo "Done. If 'make compile' fails due to a missing lib, tell me the error and I'll add it."

compile: $(HEX)

$(HEX): PS22USB.ino
  @command -v "$(ARDUINO_CLI)" >/dev/null 2>&1 || { echo "ERROR: arduino-cli not found."; exit 1; }
  "$(ARDUINO_CLI)" compile --fqbn "$(FQBN)" $(COMPILE_EXTRA_FLAGS) --output-dir "$(OUTPUT_DIR)" "$(SKETCH)"

# If USB/CDC behavior looks wrong after toggling CDC_DISABLED, run this once (slow).
compile-clean:
  @command -v "$(ARDUINO_CLI)" >/dev/null 2>&1 || { echo "ERROR: arduino-cli not found."; exit 1; }
  "$(ARDUINO_CLI)" compile --clean --fqbn "$(FQBN)" $(COMPILE_EXTRA_FLAGS) --output-dir "$(OUTPUT_DIR)" "$(SKETCH)"

# Composite CDC + HID (USB Serial in safe mode). Use when debugging safe mode over USB.
compile-serial:
  @$(MAKE) compile CDC_DISABLED=0

upload-serial:
  @$(MAKE) upload CDC_DISABLED=0

upload: $(HEX)
  @command -v "$(ARDUINO_CLI)" >/dev/null 2>&1 || { echo "ERROR: arduino-cli not found."; exit 1; }
  @test -n "$(PORT)" || { echo "ERROR: PORT is required. Example: make upload PORT=/dev/cu.usbmodem1101"; exit 1; }
  "$(ARDUINO_CLI)" upload --fqbn "$(FQBN)" --input-dir "$(OUTPUT_DIR)" -p "$(PORT)" "$(SKETCH)"

monitor:
  @command -v "$(ARDUINO_CLI)" >/dev/null 2>&1 || { echo "ERROR: arduino-cli not found."; exit 1; }
  @test -n "$(PORT)" || { echo "ERROR: PORT is required. Example: make monitor PORT=/dev/cu.usbmodem1101"; exit 1; }
  "$(ARDUINO_CLI)" monitor -p "$(PORT)" -c baudrate="$(BAUD)"

clean:
  rm -rf "$(BUILD_DIR)"

list-ports:
  "$(ARDUINO_CLI)" board list

#include <PS2KeyAdvanced.h>
#include <HID-Project.h>

// USB serial (CDC) is optional at compile time — see Makefile / docs/README.md.
// When CDC is disabled, USB enumerates as HID only (better for picky hosts / KVMs).
#if defined(USBCON) && defined(CDC_ENABLED)
#define PS22USB_HAVE_USB_SERIAL 1
#endif

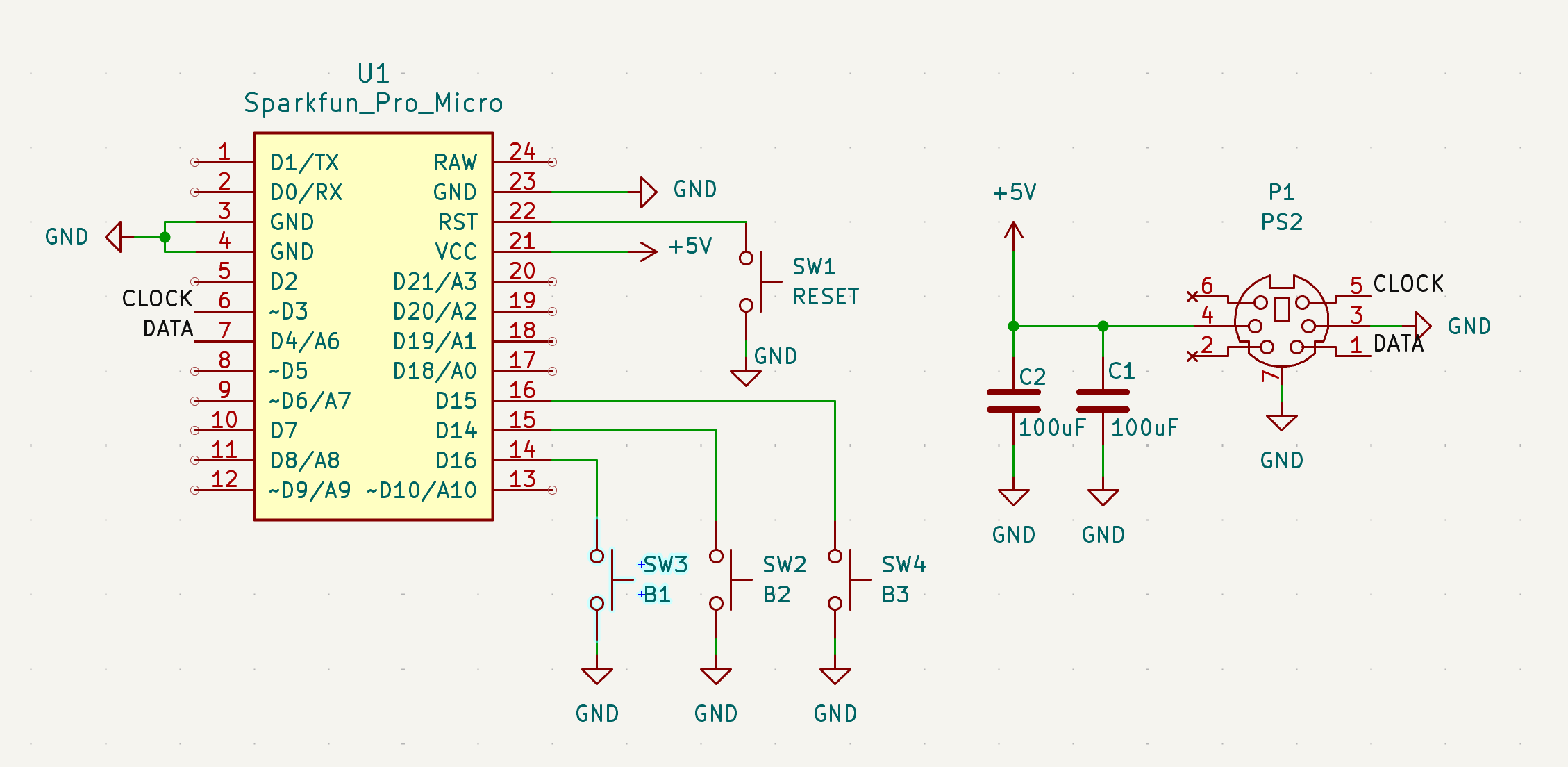

#define DATAPIN 4
#define IRQPIN 3
#define SAFEPIN 2 // jumper to GND = safe mode (no HID)

PS2KeyAdvanced keyboard;
bool hidEnabled = false;
uint8_t lastSyncedPs2Locks = 0xFF;

static inline void syncPs2LocksFromHost() {
  // Host LED state is the source of truth for Caps/Num/Scroll lock.
  const uint8_t hostLeds = BootKeyboard.getLeds();
  uint8_t ps2Locks = 0;

  if (hostLeds & LED_NUM_LOCK) ps2Locks |= PS2_LOCK_NUM;
  if (hostLeds & LED_CAPS_LOCK) ps2Locks |= PS2_LOCK_CAPS;
  if (hostLeds & LED_SCROLL_LOCK) ps2Locks |= PS2_LOCK_SCROLL;

  if (ps2Locks != lastSyncedPs2Locks) {
    keyboard.setLock(ps2Locks);
    lastSyncedPs2Locks = ps2Locks;
  }
}

static inline void sendKeyboard(KeyboardKeycode key, bool isBreak) {
  if (isBreak) BootKeyboard.release(key);
  else BootKeyboard.press(key);
}

static inline void tapKeyboard(KeyboardKeycode key) {
  BootKeyboard.press(key);
  BootKeyboard.release(key);
}

// Apply CapsLock+Shift for letters: uppercase when CapsLock XOR Shift.
static inline void sendLetter(KeyboardKeycode key, bool isBreak, uint16_t ps2Flags) {
  const bool capsOn = (ps2Flags & PS2_CAPS) != 0;
  const bool shiftOn = (ps2Flags & PS2_SHIFT) != 0;
  const bool wantUpper = capsOn != shiftOn;

  if (isBreak) {
    BootKeyboard.release(key);
    if (wantUpper) BootKeyboard.release(KEY_LEFT_SHIFT);
  } else {
    if (wantUpper) BootKeyboard.press(KEY_LEFT_SHIFT);
    BootKeyboard.press(key);
  }
}

static inline bool ps2ToBootKey(uint8_t code, KeyboardKeycode &out) {
  if (code >= PS2_KEY_A && code <= PS2_KEY_Z) {
    out = (KeyboardKeycode)(KEY_A + (code - PS2_KEY_A));
    return true;
  }
  if (code >= PS2_KEY_0 && code <= PS2_KEY_9) {
    static const KeyboardKeycode kNumberRow[10] = {
      KEY_0, KEY_1, KEY_2, KEY_3, KEY_4, KEY_5, KEY_6, KEY_7, KEY_8, KEY_9,
    };
    out = kNumberRow[code - PS2_KEY_0];
    return true;
  }
  if (code >= PS2_KEY_F1 && code <= PS2_KEY_F24) {
    out = (KeyboardKeycode)(KEY_F1 + (code - PS2_KEY_F1));
    return true;
  }
  if (code >= PS2_KEY_KP0 && code <= PS2_KEY_KP9) {
    out = (KeyboardKeycode)(KEYPAD_0 + (code - PS2_KEY_KP0));
    return true;
  }

  switch (code) {
    case PS2_KEY_ESC: out = KEY_ESC; return true;
    case PS2_KEY_BS: out = KEY_BACKSPACE; return true;
    case PS2_KEY_TAB: out = KEY_TAB; return true;
    case PS2_KEY_ENTER: out = KEY_ENTER; return true;
    case PS2_KEY_SPACE: out = KEY_SPACE; return true;

    case PS2_KEY_APOS: out = KEY_QUOTE; return true;
    case PS2_KEY_COMMA: out = KEY_COMMA; return true;
    case PS2_KEY_MINUS: out = KEY_MINUS; return true;
    case PS2_KEY_DOT: out = KEY_PERIOD; return true;
    case PS2_KEY_DIV: out = KEY_SLASH; return true;
    case PS2_KEY_SINGLE: out = KEY_TILDE; return true; // ` / ~
    case PS2_KEY_SEMI: out = KEY_SEMICOLON; return true;
    case PS2_KEY_BACK: out = KEY_BACKSLASH; return true;
    case PS2_KEY_OPEN_SQ: out = KEY_LEFT_BRACE; return true;
    case PS2_KEY_CLOSE_SQ: out = KEY_RIGHT_BRACE; return true;
    case PS2_KEY_EQUAL: out = KEY_EQUAL; return true;

    case PS2_KEY_HOME: out = KEY_HOME; return true;
    case PS2_KEY_END: out = KEY_END; return true;
    case PS2_KEY_PGUP: out = KEY_PAGE_UP; return true;
    case PS2_KEY_PGDN: out = KEY_PAGE_DOWN; return true;
    case PS2_KEY_L_ARROW: out = KEY_LEFT_ARROW; return true;
    case PS2_KEY_R_ARROW: out = KEY_RIGHT_ARROW; return true;
    case PS2_KEY_UP_ARROW: out = KEY_UP_ARROW; return true;
    case PS2_KEY_DN_ARROW: out = KEY_DOWN_ARROW; return true;
    case PS2_KEY_INSERT: out = KEY_INSERT; return true;
    case PS2_KEY_DELETE: out = KEY_DELETE; return true;

    case PS2_KEY_PRTSCR: out = KEY_PRINTSCREEN; return true;
    case PS2_KEY_PAUSE: out = KEY_PAUSE; return true;

    case PS2_KEY_MENU: out = KEY_APPLICATION; return true;
    // Num/Caps/Scroll are handled in loop() with tapKeyboard() before this runs.

    case PS2_KEY_KP_DOT: out = KEYPAD_DOT; return true;
    case PS2_KEY_KP_ENTER: out = KEYPAD_ENTER; return true;
    case PS2_KEY_KP_PLUS: out = KEYPAD_ADD; return true;
    case PS2_KEY_KP_MINUS: out = KEYPAD_SUBTRACT; return true;
    case PS2_KEY_KP_TIMES: out = KEYPAD_MULTIPLY; return true;
    case PS2_KEY_KP_DIV: out = KEYPAD_DIVIDE; return true;
    case PS2_KEY_KP_EQUAL: out = KEY_PAD_EQUALS; return true;
    case PS2_KEY_KP_COMMA: out = KEYPAD_COMMA; return true;

    case PS2_KEY_INTL1: out = KEY_INTERNATIONAL1; return true;
    case PS2_KEY_INTL2: out = KEY_INTERNATIONAL2; return true;
    case PS2_KEY_INTL3: out = KEY_INTERNATIONAL3; return true;
    case PS2_KEY_INTL4: out = KEY_INTERNATIONAL4; return true;
    case PS2_KEY_INTL5: out = KEY_INTERNATIONAL5; return true;
    case PS2_KEY_LANG1: out = KEY_LANG1; return true;
    case PS2_KEY_LANG2: out = KEY_LANG2; return true;
    case PS2_KEY_LANG3: out = KEY_LANG3; return true;
    case PS2_KEY_LANG4: out = KEY_LANG4; return true;
    case PS2_KEY_LANG5: out = KEY_LANG5; return true;
  }

  return false;
}

static inline bool ps2ToConsumer(uint8_t code, ConsumerKeycode &out) {
  switch (code) {
    case PS2_KEY_NEXT_TR: out = MEDIA_NEXT; return true;
    case PS2_KEY_PREV_TR: out = MEDIA_PREVIOUS; return true;
    case PS2_KEY_STOP: out = MEDIA_STOP; return true;
    case PS2_KEY_PLAY: out = MEDIA_PLAY_PAUSE; return true;
    case PS2_KEY_MUTE: out = MEDIA_VOLUME_MUTE; return true;
    case PS2_KEY_VOL_UP: out = MEDIA_VOLUME_UP; return true;
    case PS2_KEY_VOL_DN: out = MEDIA_VOLUME_DOWN; return true;

    case PS2_KEY_EMAIL: out = CONSUMER_EMAIL_READER; return true;
    case PS2_KEY_CALC: out = CONSUMER_CALCULATOR; return true;
    case PS2_KEY_COMPUTER: out = CONSUMER_EXPLORER; return true;

    case PS2_KEY_WEB_HOME: out = CONSUMER_BROWSER_HOME; return true;
    case PS2_KEY_WEB_BACK: out = CONSUMER_BROWSER_BACK; return true;
    case PS2_KEY_WEB_FORWARD: out = CONSUMER_BROWSER_FORWARD; return true;
    case PS2_KEY_WEB_REFRESH: out = CONSUMER_BROWSER_REFRESH; return true;
    case PS2_KEY_WEB_FAVOR: out = CONSUMER_BROWSER_BOOKMARKS; return true;

    case PS2_KEY_POWER: out = CONSUMER_POWER; return true;
    case PS2_KEY_SLEEP: out = CONSUMER_SLEEP; return true;
  }
  return false;
}

void setup() {
  pinMode(SAFEPIN, INPUT_PULLUP);
  keyboard.begin(DATAPIN, IRQPIN);



  // Safe mode: keep HID completely disabled while jumper is fitted.
  if (digitalRead(SAFEPIN) == LOW) {
#if defined(PS22USB_HAVE_USB_SERIAL)
    // Composite firmware: USB CDC works — same enumeration as stock Pro Micro + HID later.
    Serial.begin(115200);
    Serial.println("SAFE MODE ACTIVE (jumper on pin 2 to GND)");
    Serial.println("Remove jumper to continue booting into HID mode.");

    while (digitalRead(SAFEPIN) == LOW) {
      if (keyboard.available()) {
        keyboard.read();
      }
    }
#else
    // HID-only firmware: no USB serial. Blink LED so safe mode is visible.
    pinMode(LED_BUILTIN, OUTPUT);
    unsigned long nextToggle = 0;
    bool ledOn = false;
    while (digitalRead(SAFEPIN) == LOW) {
      if (keyboard.available()) {
        keyboard.read();
      }
      const unsigned long now = millis();
      if (now >= nextToggle) {
        nextToggle = now + 250;
        ledOn = !ledOn;
        digitalWrite(LED_BUILTIN, ledOn ? HIGH : LOW);
      }
    }
    digitalWrite(LED_BUILTIN, LOW);
#endif
  }

  BootKeyboard.begin();
  Consumer.begin();
  syncPs2LocksFromHost();
  hidEnabled = true;
}

void loop() {
  if (!hidEnabled) return;

  syncPs2LocksFromHost();

  // Drain multiple queued PS/2 events per pass to avoid backlog/overflow.
  uint8_t budget = 64;
  while (budget-- && keyboard.available()) {
    const uint16_t ev = keyboard.read();
    const uint8_t code = (uint8_t)(ev & 0xFF);
    if (code == 0 || code == 0xFF) continue;

    const bool isBreak = (ev & PS2_BREAK) != 0;

    // Lock keys: USB toggle tap each event (ignore isBreak; PS/2 may mark off as break).
    switch (code) {
      case PS2_KEY_CAPS:
        tapKeyboard(KEY_CAPS_LOCK);
        continue;
      case PS2_KEY_NUM:
        tapKeyboard(KEY_NUM_LOCK);
        continue;
      case PS2_KEY_SCROLL:
        tapKeyboard(KEY_SCROLL_LOCK);
        continue;
    }

    // Modifier keys (press/release) so chords work correctly.
    switch (code) {
      case PS2_KEY_L_SHIFT: sendKeyboard(KEY_LEFT_SHIFT, isBreak); continue;
      case PS2_KEY_R_SHIFT: sendKeyboard(KEY_RIGHT_SHIFT, isBreak); continue;
      case PS2_KEY_L_CTRL: sendKeyboard(KEY_LEFT_CTRL, isBreak); continue;
      case PS2_KEY_R_CTRL: sendKeyboard(KEY_RIGHT_CTRL, isBreak); continue;
      case PS2_KEY_L_ALT: sendKeyboard(KEY_LEFT_ALT, isBreak); continue;
      case PS2_KEY_R_ALT: sendKeyboard(KEY_RIGHT_ALT, isBreak); continue;
      case PS2_KEY_L_GUI: sendKeyboard(KEY_LEFT_GUI, isBreak); continue;
      case PS2_KEY_R_GUI: sendKeyboard(KEY_RIGHT_GUI, isBreak); continue;
    }

    // Multimedia / "consumer" keys.
    ConsumerKeycode consumerKey;
    if (ps2ToConsumer(code, consumerKey)) {
      if (!isBreak) Consumer.write(consumerKey);
      else Consumer.release(consumerKey);
      continue;
    }

    // Standard keyboard keys.
    KeyboardKeycode bootKey;
    if (ps2ToBootKey(code, bootKey)) {
      // Letters need CapsLock+Shift applied for correct case.
      if (code >= PS2_KEY_A && code <= PS2_KEY_Z)
        sendLetter(bootKey, isBreak, ev);
      else
        sendKeyboard(bootKey, isBreak);
      continue;
    }
  }
}
